100A 1500V Connector A-ESC-100 for C&I Solar-Plus-Storage Mid-Sized Battery Cabinets | C&I BESS Solar-Storage Cabinet

Model: A-ESC-100

Rated 1500V DC / 100A with single-pole single-core architecture for clean, low-resistance circuit isolation
Silver-plated copper contacts in PA66 housing deliver <5mΩ contact resistance and long-term conductivity under thermal cycling

IP67-sealed and UL94 V-0 rated — fully protected against dust ingress, water splash, and flame propagation

Crimp termination accepts 16mm² (6 AWG) cable with 7.5–9mm outer diameter for fast, reliable field installation

Engineered for ≥1,000 mating cycles and a −40 °C to +125 °C operating range, meeting the demands of outdoor and industrial BESS enclosures

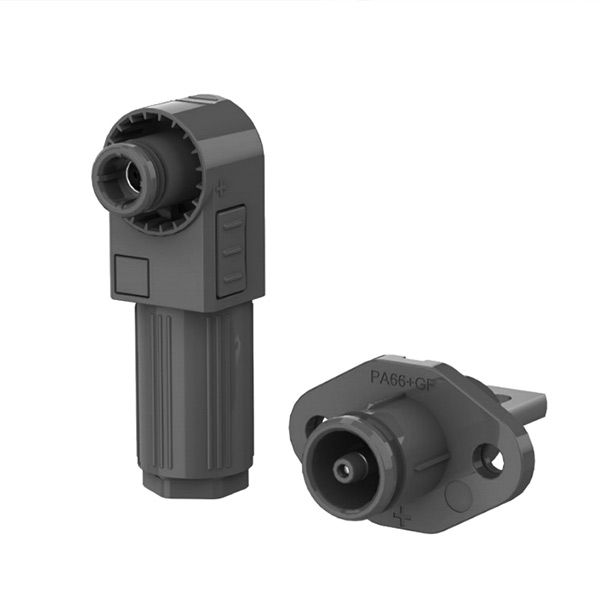

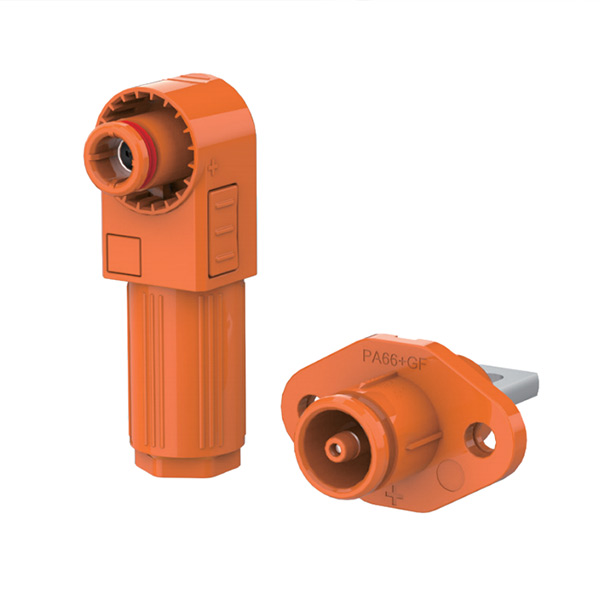

Available in orange, black, and red for polarity identification and system-level color coding

Inquiry Now

Description

Constructed with a rugged, flame-retardant UL94 V-0 PA66 housing and high-conductivity silver-plated copper contacts, the VENERBASE A-ESC-100 tackles the rigorous demands of 100-amp utility-scale and light commercial BESS projects. It eliminates the overheating risks typical of lower-grade terminals by maintaining a contact resistance below 5mΩ. Utilizing a larger 5.8mm pin geometry, it accommodates 16mm² (6 AWG) conductors with a smooth insertion force capped at 60N, streamlining the manual assembly process for field technicians. Fully IP67-rated against moisture and dust ingress, this 1500V DC component provides unparalleled reliability for over 1,000 mating cycles, making it a critical asset for deployments exposed to extreme seasonal temperature shifts.
