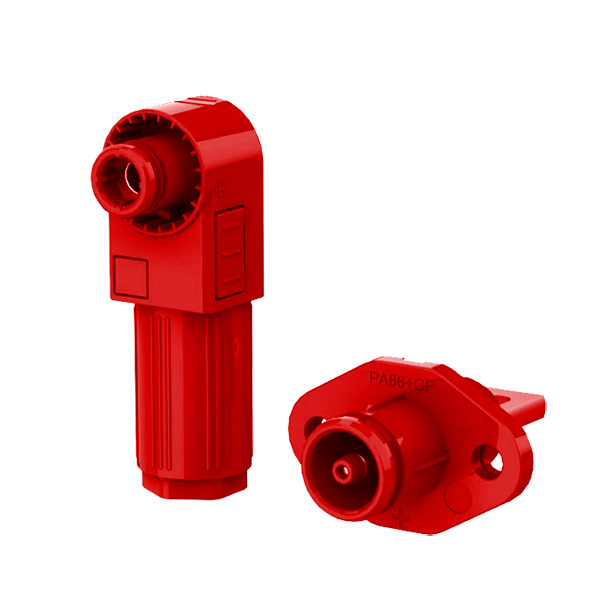

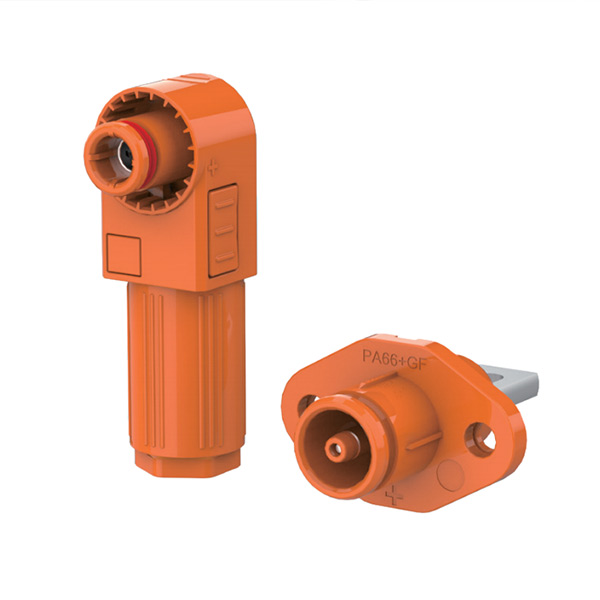

1500V DC Connector for Commercial Microgrids & Forklift Battery Packs — Microgrid Storage, Motive Power, 120A

Model: A-ESC-120

Rated 1500V DC / 120A — handles high-voltage BESS and utility-scale solar string connections with confidence
Silver-plated copper contacts in PA66 housing deliver contact resistance under 5 mΩ for minimal heat buildup

IP67-sealed and UL94 V-0 rated — stands up to outdoor cabinets, containerized ESS, and harsh industrial environments

Engineered for 25 mm² (4 AWG) cable with a 9–10.5 mm outer diameter range, covering most standard energy storage wiring

Crimp termination with a 13–14 mm strip length ensures consistent, low-resistance joints on every installation

Rated for 1,000+ mating cycles across a –40 °C to +125 °C operating range — built for the full service life of the system

Inquiry Now

Description

To explicitly mitigate thermal buildup and voltage drops in high-capacity solar-plus-storage arrays, the VENERBASE A-ESC-120 utilizes precision-engineered silver-plated contacts capable of sustaining 120A at 1500V DC. This robust single-core connector solves the vulnerability of weak physical links by requiring a secure crimp termination onto 25mm² (4 AWG) wiring, ensuring absolute structural integrity under mechanical vibration. Its 5.8mm pin design restricts contact resistance to under 5mΩ. Encased in a halogen-free PA66 body that is both IP67 waterproof and UL94 V-0 flame-retardant, the connector is purpose-built to survive 1,000+ mating cycles. It provides EPC contractors with a fail-safe interconnection solution for outdoor ground-mounted systems.
