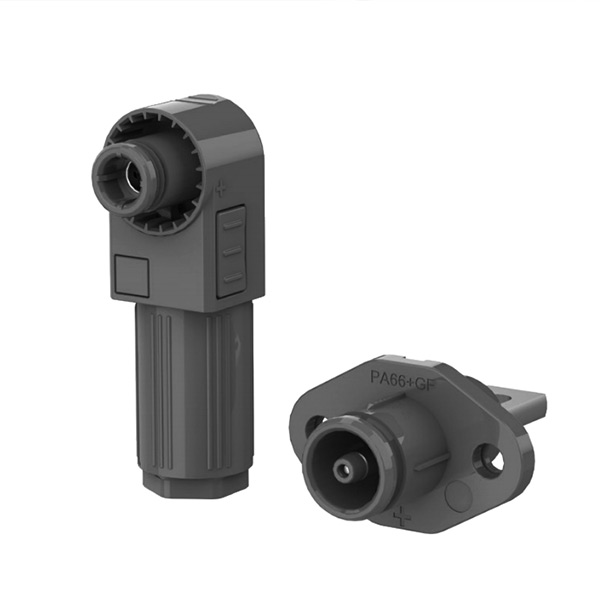

1500V Energy Storage Connector for Containerized ESS Auxiliary & Marine Battery Systems - Container BESS, Marine Storage, 200A

Model: A-ESC-200

Rated 1500V DC / 200A continuous — handles the high-voltage demands of utility-scale BESS and large solar-storage arrays
Silver-plated copper contacts inside a UL94 V-0 PA66 shell deliver both low contact resistance and flame-retardant structural integrity

IP67-sealed against dust ingress and sustained water immersion, keeping connections reliable in outdoor enclosures and marine-adjacent installations

Accepts 50 mm² (1/0 AWG) cable with a 12.5–14 mm outer diameter, covering the wire gauges most commonly specified in high-current DC trunk runs

Crimp termination with a 9.6 mm pin and ≤100 N mating force makes field assembly fast without sacrificing retention strength

Rated for 1,000+ mating cycles across –40 °C to +125 °C, available in orange, black, or red to match system colour-coding conventions

Inquiry Now

Description

Operating safely across extreme temperature fluctuations from –40°C to +125°C, the 200-amp VENERBASE A-ESC-200 is built for heavy industrial microgrids and large-format battery cabinets. Delivering uninterrupted 1500V DC power, it matches a 9.6mm silver-plated copper contact with 50mm² (1/0 AWG) cabling via an industrial crimp interface. This precise engineering keeps resistance below 5mΩ, actively preventing thermal runaway at the connection point during peak grid-feeding hours. The exterior PA66 housing is IP67-sealed to block conductive dust and moisture, while adhering to UL94 V-0 fire-safety protocols. With a guaranteed mechanical life of over 1,000 mating cycles, it provides system integrators with unparalleled linkage resilience.
