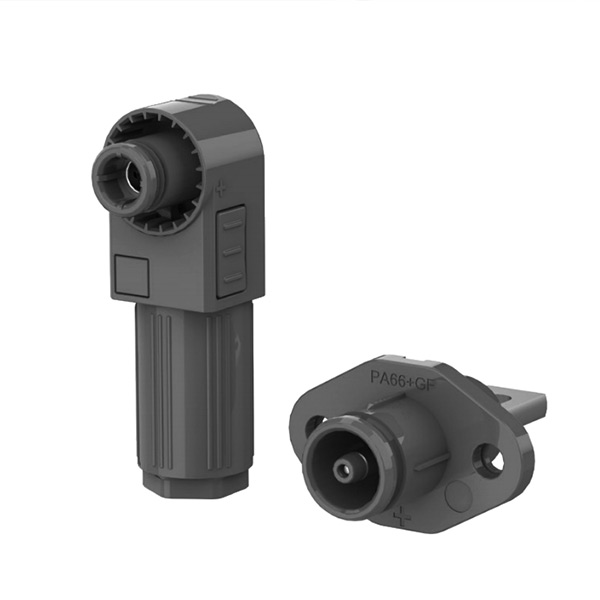

480A Connector for Grid Stabilization ESS & Heavy-Duty BESS
Model: A-ESC-480
Rated 1500V DC / 480A for high-power BESS, utility-scale solar, and EV charging infrastructure
Silver-plated copper contacts in PA66 housing deliver ultra-low resistance and long-term corrosion resistance
Accommodates 185mm² single-core cable with a 26mm outer diameter — built for heavy-gauge DC trunk lines
IP67-sealed and UL94 V-0 rated, shrugging off moisture ingress and flame propagation in outdoor enclosures
Withstands a brutal −40 °C to +125 °C operating range, suitable for desert solar farms and arctic storage installations
Crimp termination with ≤100 N insertion force and a verified 1,000+ mating-cycle service life keeps maintenance intervals long
Handling extraordinary currents up to 480A at 1500V DC, this flagship VENERBASE heavy-duty connector acts as the ultimate linkage for top-tier grid-storage infrastructure. The A-ESC-480 relies on an oversized 15.5mm silver-plated copper pin to securely mate with massive 185mm² cables, ensuring unparalleled thermal dissipation and a contact resistance of under 5mΩ. Designed for zero-compromise safety, the UL94 V-0 flame-retardant PA66 body boasts an IP67 rating, shutting out moisture and industrial dust entirely. Tested to withstand over 1,000 insertion cycles, it provides EPC contractors with the definitive solution for maximum-capacity battery container interconnections.
