MW BESS Container DC Busbar Connector 350A – A-ESC-350 for Mega-Watt BESS Containers & High-Power DC Busbars, 1500V IP67

Model: A-ESC-350

Rated 1500V DC / 350A for high-power battery energy storage and utility-scale solar applications

Single-pole, single-core crimp termination fits 120 mm² (4/0 AWG) cable with 19.9–20.9 mm outer diameter

Silver-plated copper contacts housed in UL94 V-0 PA66 shell — built for thermal stability from -40 °C to +125 °C

IP67-sealed against dust and water ingress, keeping critical DC circuits protected in outdoor and containerized BESS enclosures

12.4 mm pin interface with ≤100 N insertion force and a verified service life of 1,000+ mating cycles

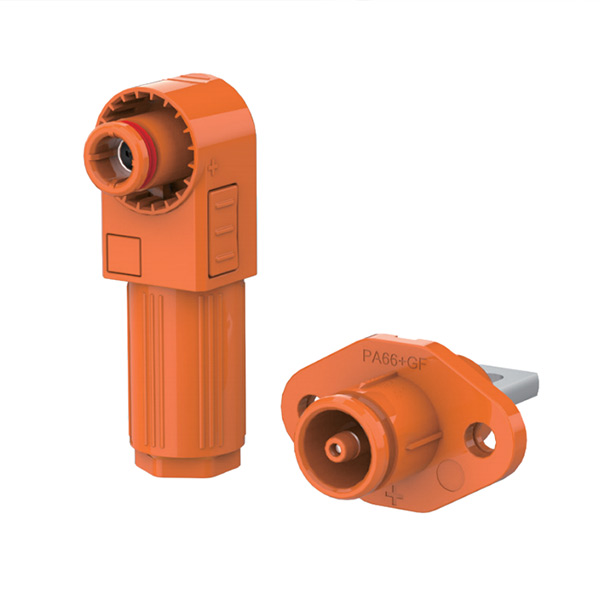

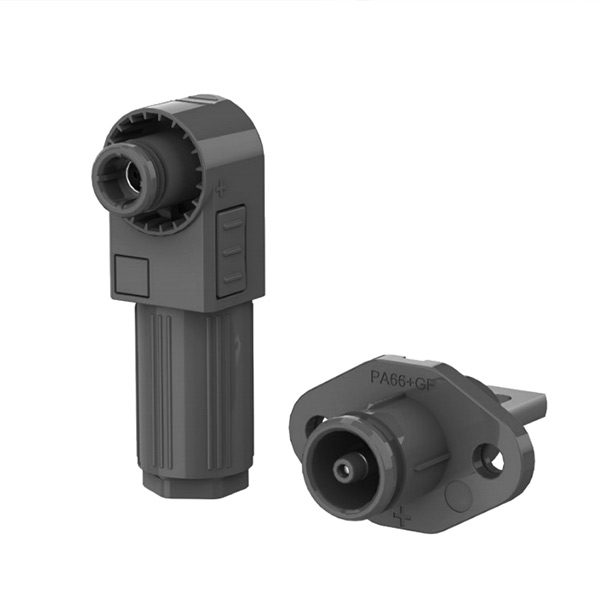

Available in orange, black, or red to meet color-coding and safety-marking requirements across global installations

Inquiry Now

Description

Addressing the critical need for secure, high-current transmission in utility-scale ESS, the VENERBASE A-ESC-350 leverages a precise 12.4mm pin to seamlessly channel 350A of continuous 1500V DC power. By adapting perfectly to massive 120mm² (4/0 AWG) conductors, it eradicates the voltage drops and thermal bottlenecks that plague standard connectors. The connection is fortified with a 100N insertion force, ensuring absolute stability against mechanical shocks. Encapsulated within a rugged PA66 UL94 V-0 body, it provides IP67 waterproofing and dust resistance. Rated for over 1,000 insertion cycles, this elite component empowers grid operators to deploy high-voltage arrays with total confidence.
