A-ESC-LD Energy Storage Connector — Screw-Down Flange for High-Vibration Environments, Vibration-Proof Equipment Enclosure Interface

Energy Storage Connector — Screw-Down Flange for High-Vibration Environments

Model: A-ESC-LD

Rated up to 1500V DC / 120A — engineered for high-voltage BESS, solar-storage, and EV charging infrastructure

Arc-resistant, IP67-sealed housing in PA66 with UL94 V-0 flame rating keeps connections secure in harsh outdoor environments

Torsion-spring crown contact delivers contact resistance ≤0.5 mΩ and insulation resistance >5,000 MΩ for virtually lossless power transfer

One-press release mechanism paired with ≤75 N mating force makes installation and field servicing fast and tool-free

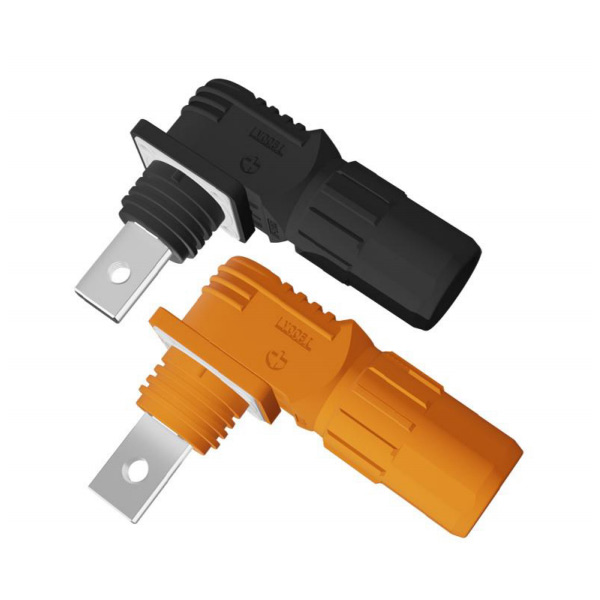

360° rotating elbow plug head eliminates cable-routing stress and accommodates 10 / 16 / 25 mm² conductors without adapters

Rated for 500+ mating cycles across –40 °C to +125 °C — built for the full service life of utility-scale and commercial battery cabinets

Inquiry Now

Description

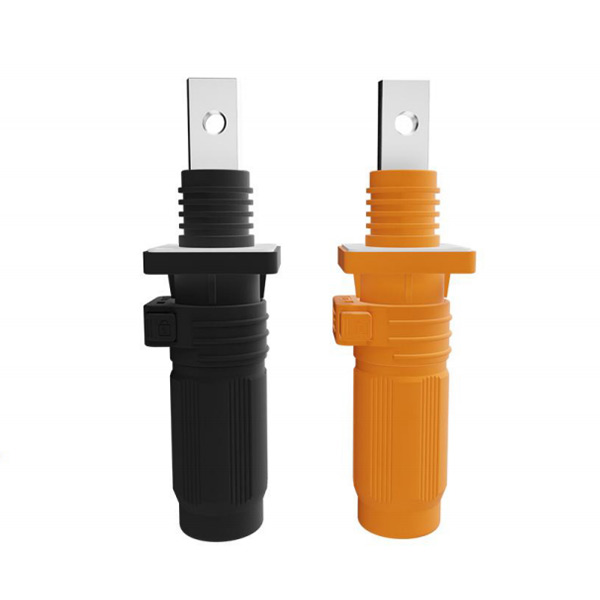

Specifically designed with a protruding external screw (LD) mounting base for rapid BESS enclosure integration, this 360-degree rotating connector provides unmatched cable routing flexibility. The VENERBASE A-ESC-LD supports versatile 1000V to 1500V DC configurations, relying on premium T2Y pure copper to maintain a contact resistance of ≤0.5mΩ. Featuring an innovative torsion-spring crown mechanism, it enables secure mating and swift one-touch decoupling. Its anti-arcing, IP67 waterproof construction is fully UL94 V-0 compliant, offering comprehensive protection against electrical faults and environmental degradation. Rated for 500+ cycles, it is an essential component for modern, tightly packed battery modules.
