Panel Receptacle, Threaded Mount — Threaded Panel Mount for Flush Cabinet Integration on Cabinet Wall, 1000/1500V, up to 120A
Model: A-ESC-M
Rated up to 1500V DC / 120A with contact resistance ≤0.5mΩ — engineered for zero-compromise conductivity in high-voltage BESS arrays
Torsion-spring crown contact technology delivers one-touch release while sustaining ≥500 mating cycles with consistent, low-insertion-force operation (≤75N)

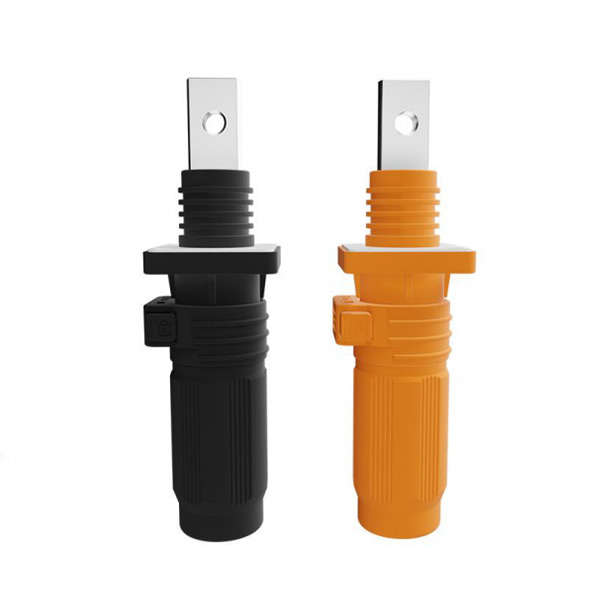

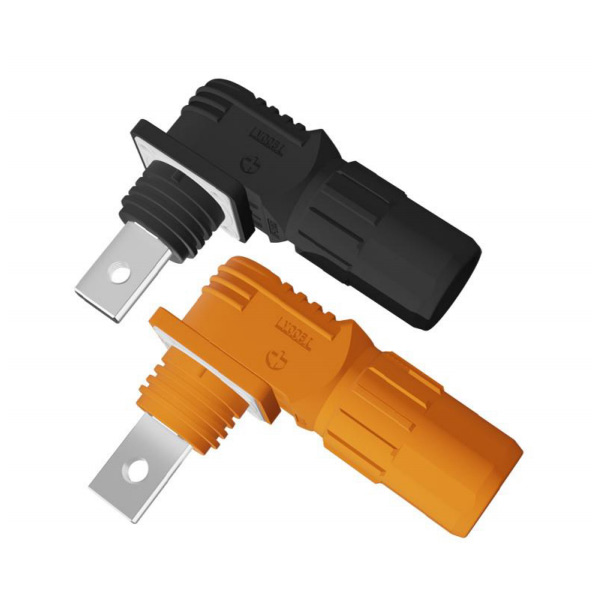

360° swivel elbow and straight plug heads accommodate tight cable routing in battery cabinets and inverter enclosures without strain relief compromise
IP67-sealed, arc-resistant socket face combined with UL94 V-0 PA66 housing ensures reliable performance from -40°C to +125°C in outdoor and industrial environments
Anti-finger-touch and anti-miswiring geometry, plus tri-color positive/negative polarity coding (orange, red, black), eliminates field wiring errors during commissioning
Dielectric withstand rated to 4200V / 6800V AC with insulation resistance >5000MΩ — compatible with 10 / 16 / 25mm² cables and M-thread panel mounting
The VENERBASE A-ESC-M introduces an advanced torsion-spring crown connection technology, enabling a rapid one-touch release that drastically cuts down assembly and maintenance times. Engineered for flexibility, the plug features a 360-degree rotating right-angle or straight head, utilizing T2Y pure copper to achieve an incredibly low contact resistance of ≤0.5mΩ. Operating safely at 1000V or 1500V DC (up to 120A), it is designed with anti-arcing capabilities, touch-proof safety features, and a foolproof color-coded mating system. The specialized threaded-hole (M) mounting base ensures secure integration into BESS cabinets, backed by an IP67-rated, UL94 V-0 PA66 housing.
