Through-Hole Lug for Multi-Angle Copper Busbar Routing

Model: A-ESC-T

Rated up to 1500V DC / 120A with ultra-low contact resistance ≤0.5mΩ — engineered for high-efficiency BESS and solar-storage systems

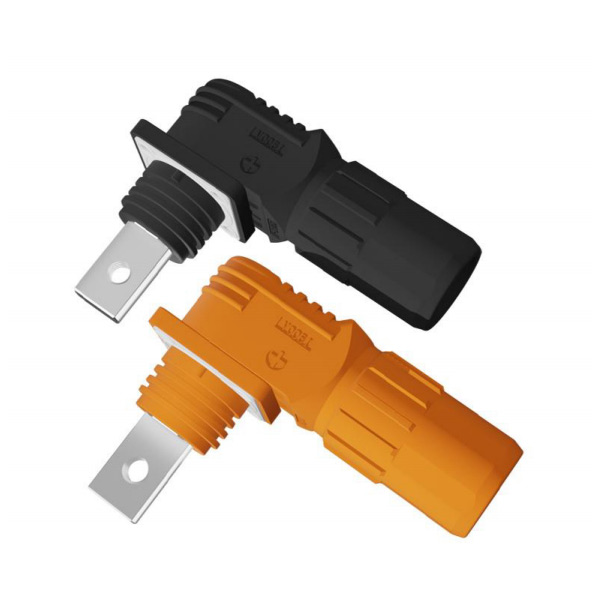

360° rotating elbow-to-straight plug design eliminates cable stress and simplifies multi-orientation busbar installations
Torsion-spring crown contact body delivers one-touch release with a smooth insertion force ≤75N and a verified service life of ≥500 mating cycles

Through-hole lug termination (T-type) accommodates 10 / 16 / 25 mm² cables and supports flexible multi-angle copper busbar routing

Arc-resistant, weatherproof IP67 housing in PA66 / UL94 V-0 glass-filled nylon withstands -40 °C to +125 °C field conditions

Insulation resistance >5000 MΩ ensures long-term dielectric integrity across utility-scale storage, EV charging infrastructure, and telecom backup applications

Inquiry Now

Description

Featuring a specialized through-hole (T) terminal design that facilitates multi-directional copper busbar routing, this highly adaptable connector provides unparalleled layout freedom for internal ESS cabinet architecture. The VENERBASE A-ESC-T handles up to 120A and 1500V DC, utilizing top-grade T2Y pure copper and a torsion-spring crown to maintain exceptional conductivity (≤0.5mΩ). Its 360-degree rotating plug, paired with a rapid one-touch release system, makes field servicing remarkably efficient. Housed in an IP67 waterproof and UL94 V-0 flame-retardant PA66 body, it integrates robust anti-arcing and touch-proof safeties, guaranteeing over 500 flawless insertion cycles.
