A-ESC-LM Connector — Nut-Fastened Bulkhead for Rapid Assembly Lines | Nut Fastened Bulkhead Mount

Nut-Fastened Bulkhead for Rapid Assembly Lines

Model: A-ESC-LM

Rated up to 1500V DC / 120A for high-voltage BESS and utility-scale solar-storage arrays

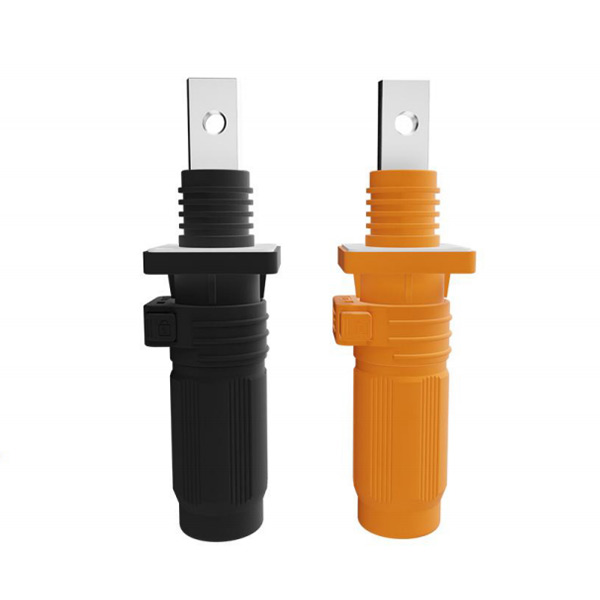

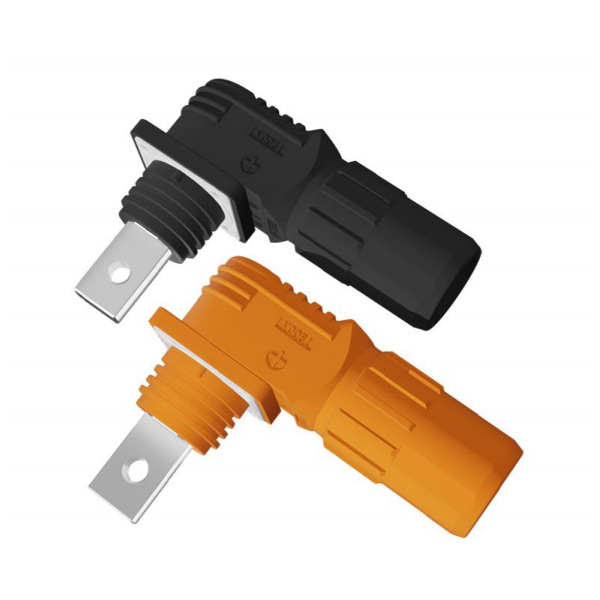

360° rotating elbow-plus-straight-head design eliminates cable strain in tight enclosure layouts

Torsion-spring crown contact delivers contact resistance ≤0.5 mΩ with one-push release for fast field service

IP67 weatherproofing and arc-resistant construction ensure reliable outdoor and harsh-environment deployment

PA66 housing (UL94 V-0) paired with pure T2 copper contacts rated for 500+ mating cycles across −40 °C to +125 °C

Nut-mount (LM) termination accommodates 10 / 16 / 25 mm² cable cross-sections, insulation resistance >5000 MΩ

Inquiry Now

Description

To streamline manufacturing times on highly automated BESS assembly lines, the VENERBASE A-ESC-LM utilizes a specialized nut-locking (LM) terminal base for instantaneous, rigid panel mounting. Capable of handling up to 120A at 1500V DC, it employs T2Y pure copper and a torsion-spring crown interface to drop contact resistance to a microscopic ≤0.5mΩ. The 360-degree rotational plug eliminates cable torsion stress, preventing premature wear on heavy 10-25mm² wiring. Completely IP67-sealed, waterproof, and equipped with rigorous anti-arcing mechanisms, this UL94 V-0 flame-retardant connector empowers system integrators to build safer, more compact battery racks.
